MaxLink 1.25G SFP optical HP modul, WDM(BiDi), SM, Tx 1310/Rx1550nm, 20km, 1x LC connector, DDM, HPE komp.ilní

0/0

MaxLink 1.25G SFP optical HP modul, WDM(BiDi), SM, Tx 1310/Rx1550nm, 20km, 1x LC connector, DDM, HPE komp.ilní

ML-S3155-20-HPE

Where to buy

Maxlink ML-S3155-20-HPE is a 1.25G SFP WDM module with a Tx 1310 / Rx 1550 wavelength, a single LC connector, and a maximum transmission distance of 20km over single-mode optical fiber. The SFP module supports monitoring (DDM).The LC connector in the SFP module uses UPC polishing.HPE CompatibilityT... More information

To select 2 variants

All variants(compare all)

HPE, 20kmML-S3155-20-HPEcurrently displayed productMaxlink ML-S3155-20-HPE is a 1.25G SFP WDM module with a Tx 1310 / Rx 1550 wavelength, a single LC connector, and a maximum transmission distance of 20km over single-mode optical fiber. The SFP modul...

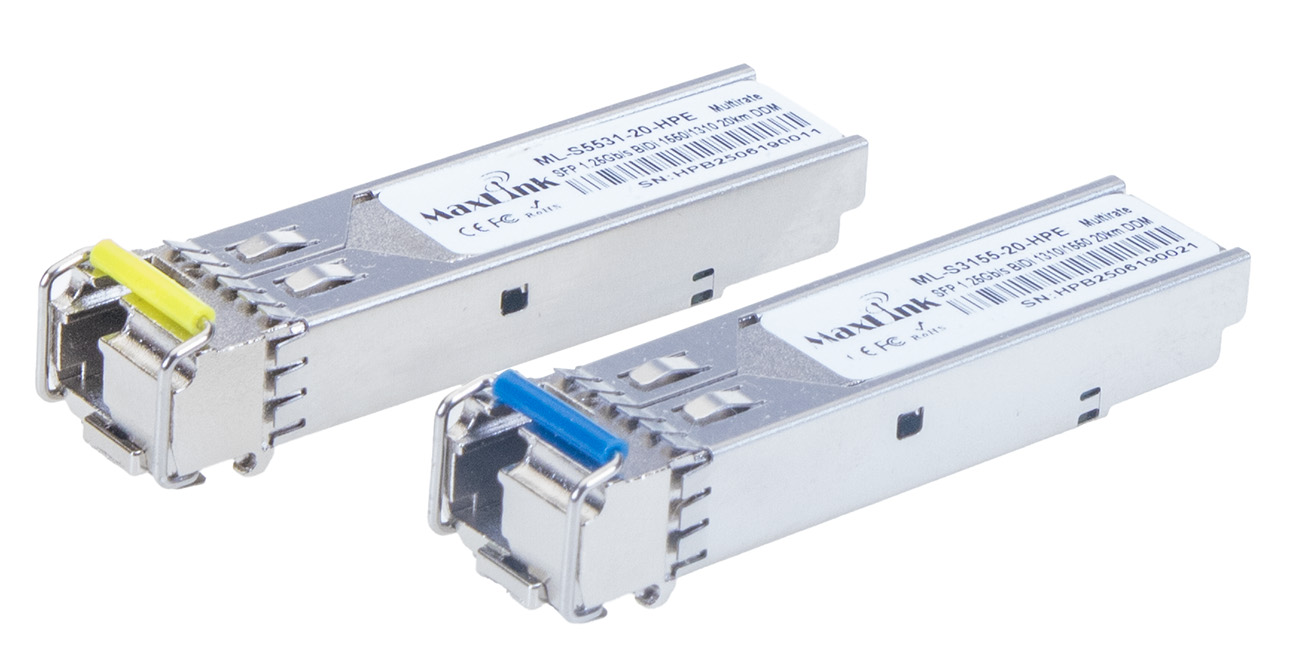

H3C, 20kmML-S3155-20-H3CMaxlink ML-S3155-20-H3C is a 1.25G SFP WDM module with a Tx 1310 / Rx 1550 wavelength, a single LC connector, and a maximum transmission distance of 20km over single-mode optical fiber. The SFP modul...

compare send a question

Send a question

E-mail

Text

Send

Product description

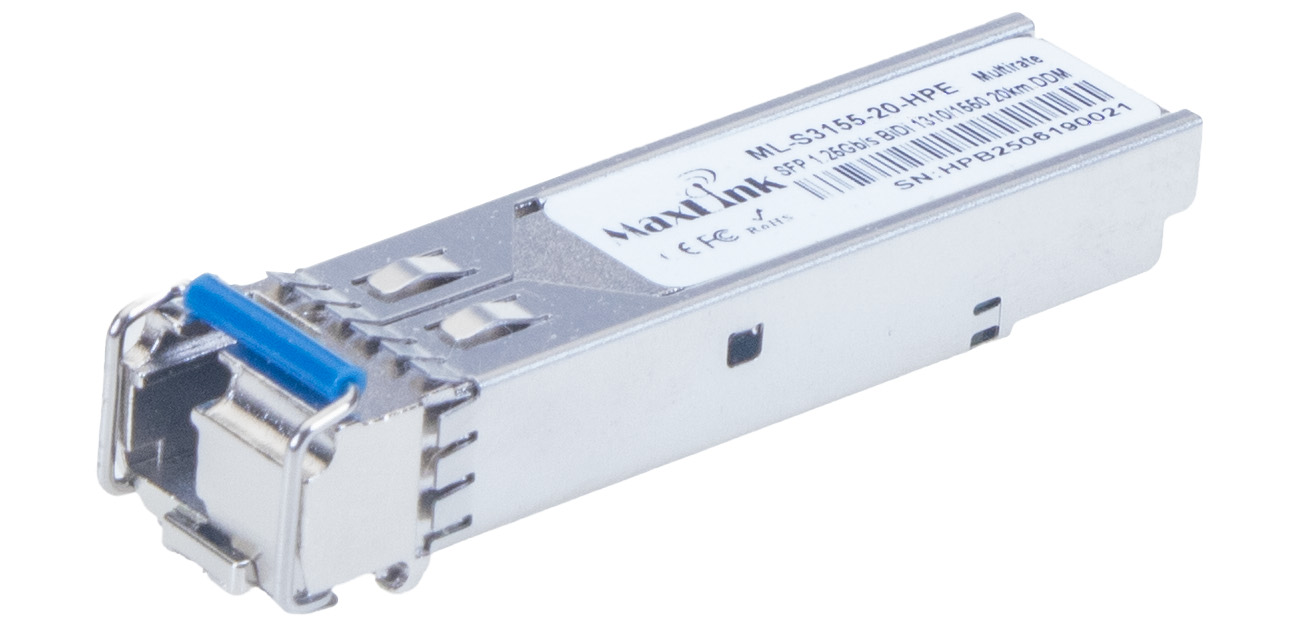

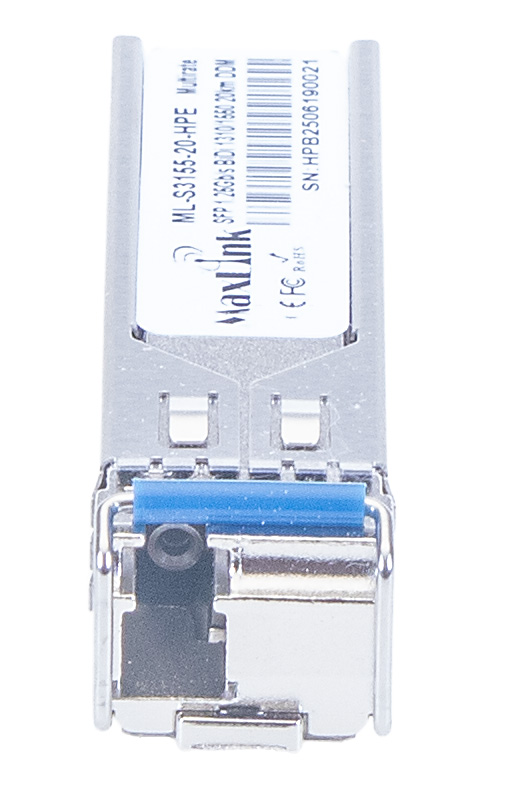

Maxlink ML-S3155-20-HPE is a 1.25G SFP WDM module with a Tx 1310 / Rx 1550 wavelength, a single LC connector, and a maximum transmission distance of 20km over single-mode optical fiber. The SFP module supports monitoring (DDM).

The LC connector in the SFP module uses UPC polishing.

HPE Compatibility

The modules are compatible with HPE Aruba Networking ProCurve AOS-S 2530/2540/2930/3810 and AOS-CX 6200/6300/6400/83xx/84xx/93xx/81xx switches.

Specifications

Optics

Format:SFP

For cable type:Single Mode

Transmission speed:1 Gbps

Wavelength - Tx/Rx [nm]:1310 / 1550

Distance [km]:20

Transfer type:WDM

Polishing type:UPC

Connectors and Interfaces

Optical Connectors:(1) LC

General

Compatibility:HPE

Software

DDMI - diagnostics:Yes
