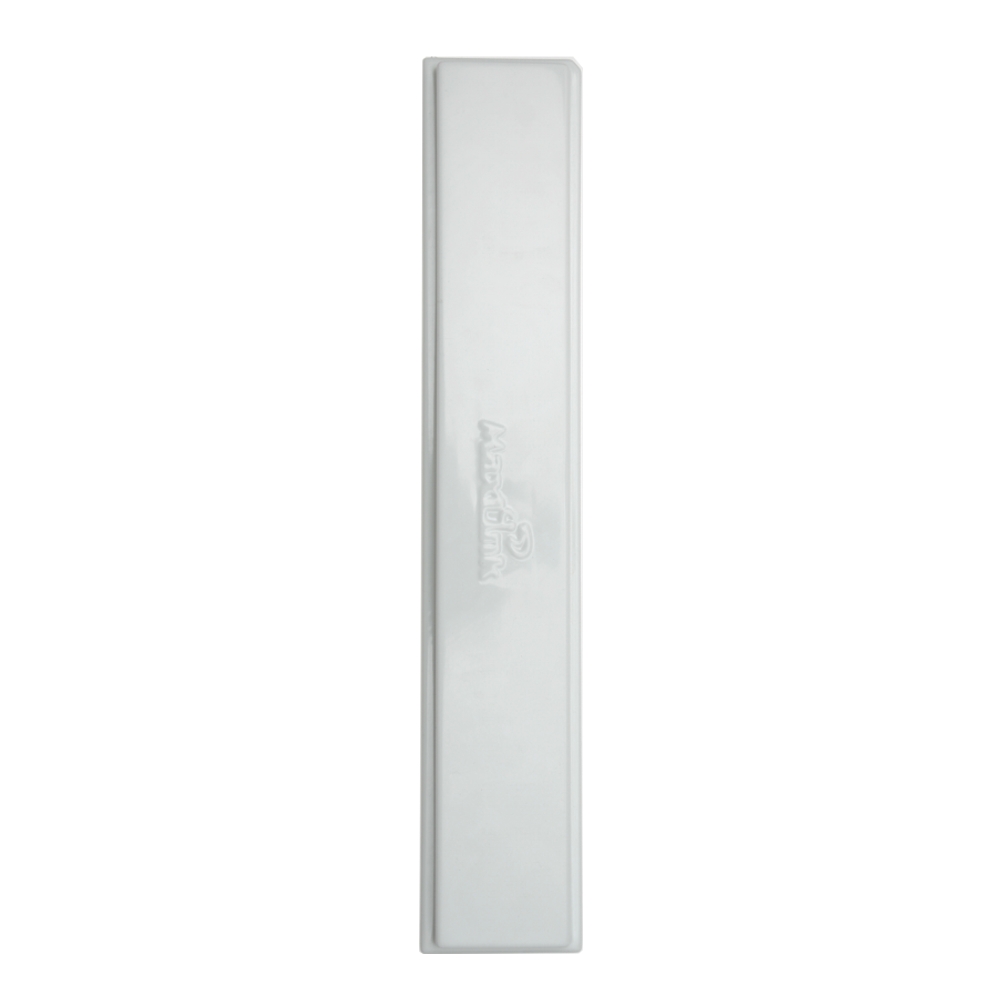

MaxLink sector antenna 17dBi 5GHz, vertical, H 90°/V 8°

02-SE-MV17-90
High power sector antenna with 17dBi gain. Vertical polarization, beam angle H / V 90 ° / 8 °. Antenna dimensions 450 x 90 x 24 mm, SVR ... More information

Product description

High power sector antenna with 17dBi gain. Vertical polarization, beam angle H / V 90 ° / 8 °. Antenna dimensions 450 x 90 x 24 mm, SVR <1.5, termination N female. An adjustable mast holder is included in the package. Professional sector antenna with a gain of 17 dBi. The heart of the antenna is a 1 mm thick PCB board in the GOLD FLASH design. The antenna cover is made of high-quality UV-stable ABS plastic with a thickness of 1.5 mm. For bonding and sealing the antenna was used professional adhesive and sealing mastic made by Würth. 1.5 mm thick aluminum sheet is used as a counterweight and back to the antenna to achieve the lowest possible weight. The antenna holder is made of galvanized steel sheet with a thickness of 2 mm for maximum strength, while allowing the antenna to rotate in the range of 45 ° in the vertical direction.

Specifications

Wireless features

MIMO, SISO:1 x 1
VSWR:< 1,5
Polarization:V
F/B ratio [dB]:30
Wireless frequency:5 GHz
Elevation beam width (-6dB) [°]:8
Azimuth beam width (-6dB) [°]:90
Antenna type:Sector
Antenna gain [dBi]:17

Connectors and Interfaces

RF connectors:(1) N female

Physical characteristics

Designed for mast diameter [mm]:28 up to 66
Purpose:Outdoor
Material:Aluminum, UV stabilized ABS plastic
Weight [kg]:0,8
Depth [mm]:25
Width [mm]:90
Height [mm]:450
