MaxLink PSAF-5G-4P PoE switch, 5x GLAN/4x PoE, 802.3af, 60W, 10/100/1000Mbps

PSAF-5G-4P

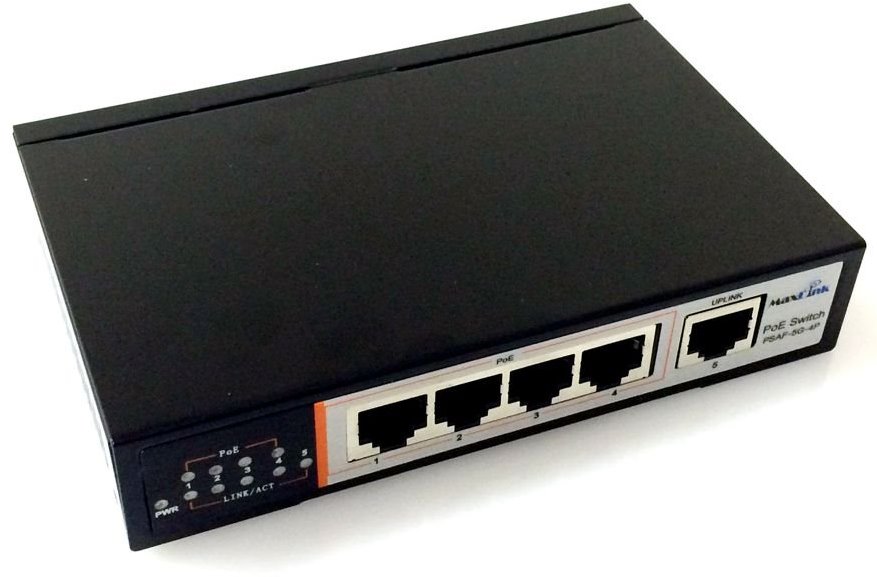

PSAF-5G-4P is 5 port 10/100/1000Mbps unmanaged switch with 4 PoE ports. Switch automatically detecting and powering 802.3af (up to 15,4W/port) devices on 1 - 4 ports. 5th port is normal ethernet ports without PoE functionality as uplink port. Total PoE budget for devices is 60W with external power ... More information

Product description

PSAF-5G-4P is 5 port 10/100/1000Mbps unmanaged switch with 4 PoE ports. Switch automatically detecting and powering 802.3af (up to 15,4W/port) devices on 1 - 4 ports. 5th port is normal ethernet ports without PoE functionality as uplink port. Total PoE budget for devices is 60W with external power adapter 48V/1,25A, which is included the package.

With this switch you can power wide range of IP cameras, VoIP telephones, WiFi AP and other devices supporting 802.3af PoE standard.

Package contains

  • Device
  • Power adapter 48V/1.25A
  • Power cord

Specifications

Connectors and Interfaces

LAN speed:(5) 10/100/1000Mbps

Power

Power type:DC connector
PoE type:PoE-Out (only)
PoE-Out standards:802.3af
PoE Out ports:4
PoE budget [W]:60
Max. power consumption [W]:
Power via connector/terminal:48V / 1,25A

Physical characteristics

Design:Desktop
Fans:No
Chassis design:Metal
Operating temperature [°C]:0 up to 45
Height [mm]:28
Depth [mm]:91
Width [mm]:140

General

MAC address table:1000
