MaxLink reverse PoE switch RSG-8-1P-DC, 7x PoE IN, 1x PoE Out, 1x DC Out

RSG-8-1P-DC
Reverse manageable PoE switch MaxLink has 8 ethernet ports 10/100/1000 Mbps from which 7 ports are allowing PoE-In. The last 8th port is supporting PoE-Out for powering the antenna.7x PoE-In, 1x PoE-OutPorts 1-7 are supporting PoE-In, port 8 is supporting PoE-Out. The switch only accepts passive 24... More information

Product description

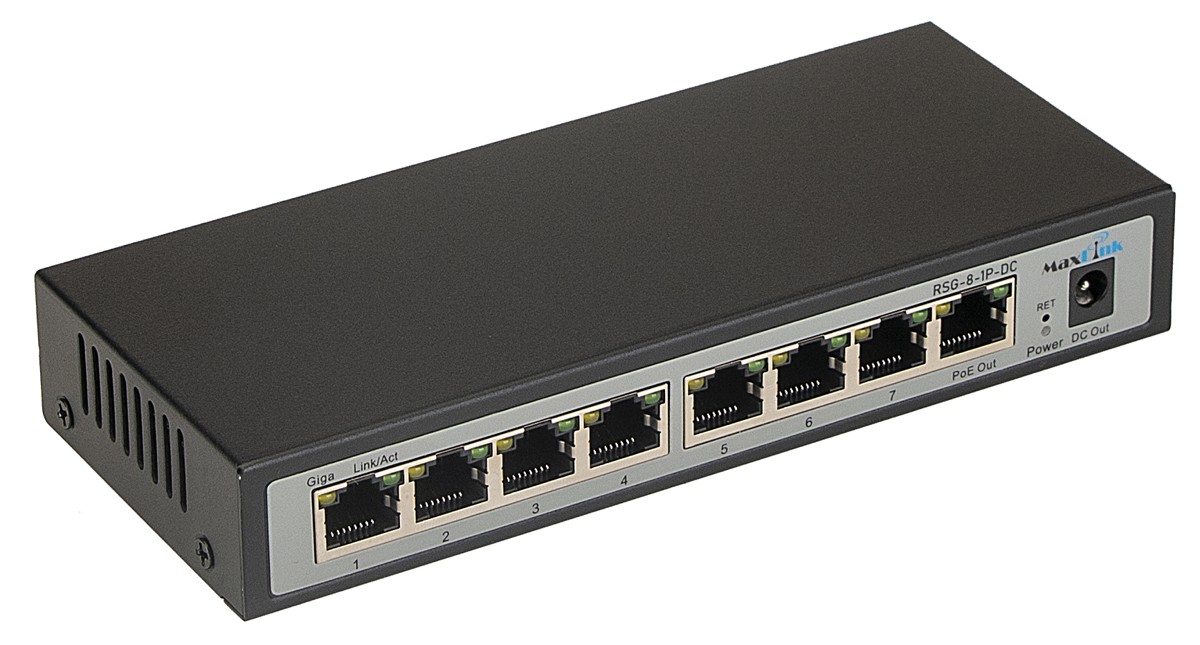

Reverse manageable PoE switch MaxLink has 8 ethernet ports 10/100/1000 Mbps from which 7 ports are allowing PoE-In. The last 8th port is supporting PoE-Out for powering the antenna.

7x PoE-In, 1x PoE-Out

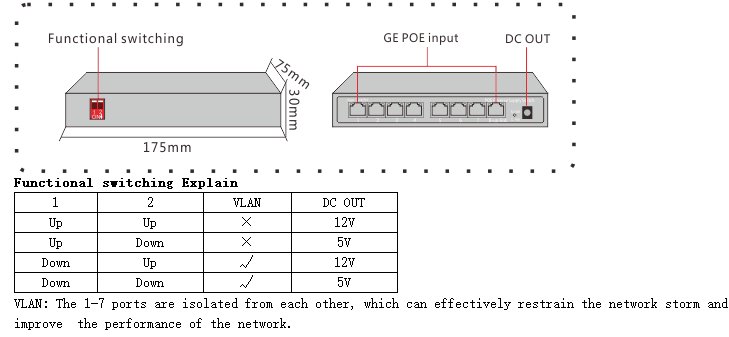

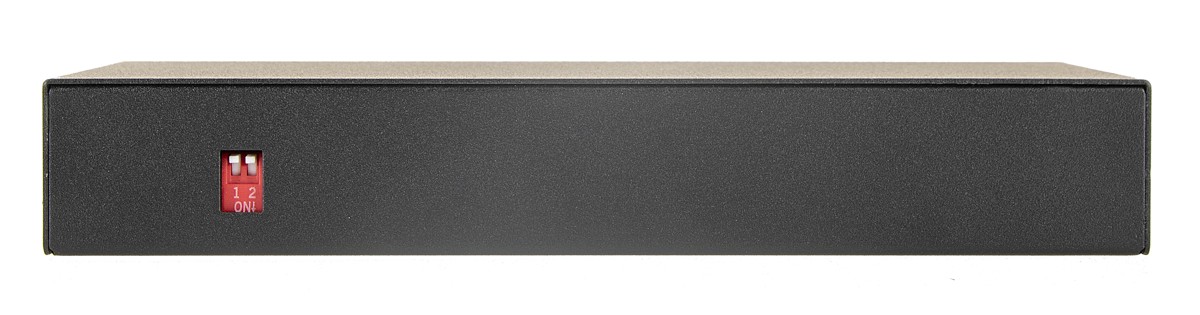

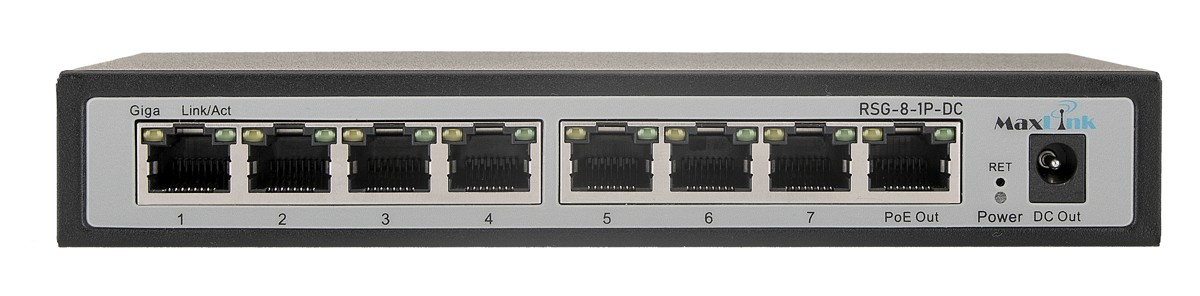

Ports 1-7 are supporting PoE-In, port 8 is supporting PoE-Out. The switch only accepts passive 24 - 48V PoE on the input PoE ports. The output power is same as the input power. On the front side, there is also a 5V/12V DC output via a standard 5.5/2.1mm DC connector with the option of selecting voltage using a switch on the back side. It is possible to connect various input voltages to the PoE-In ports, the highest of them is always presented at the output.

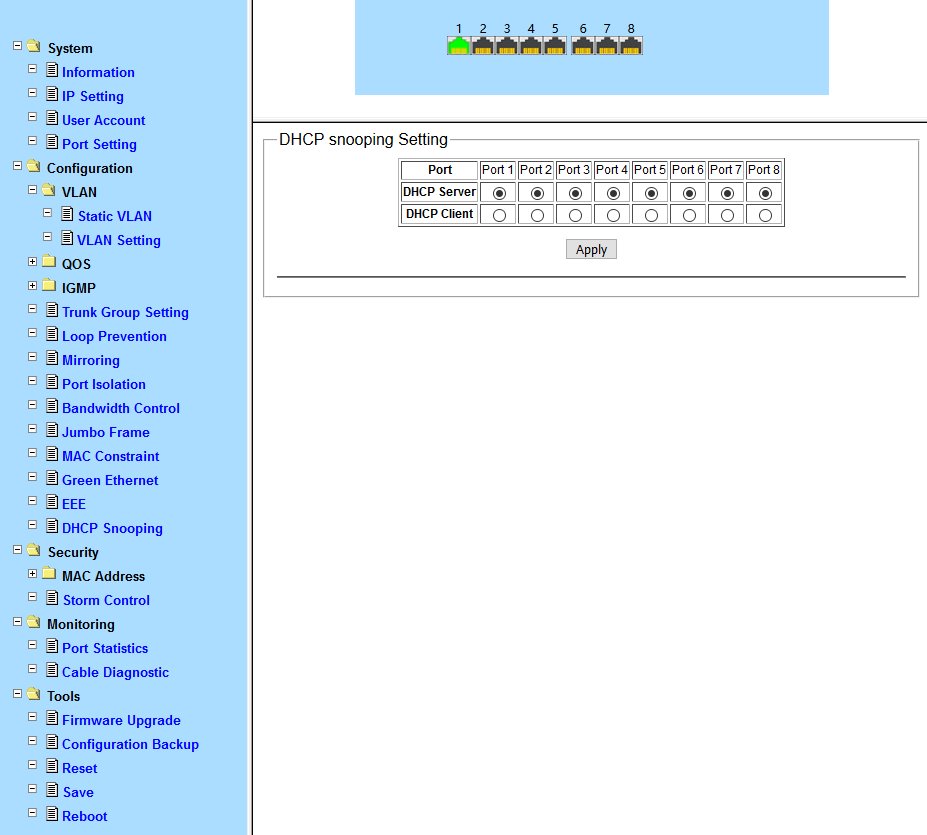

Web management

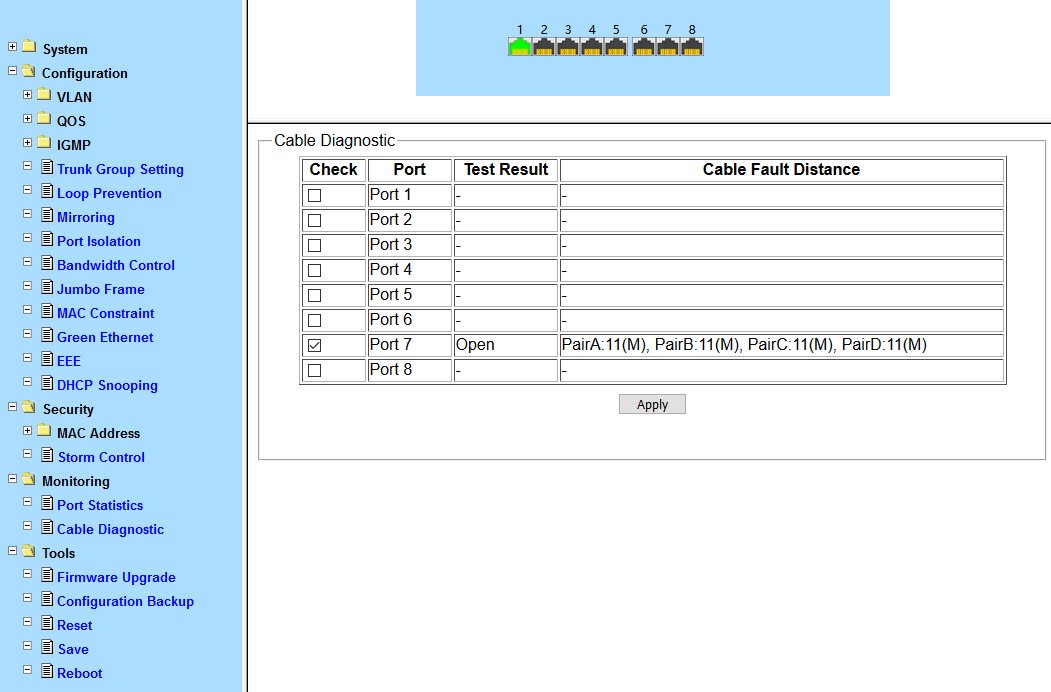

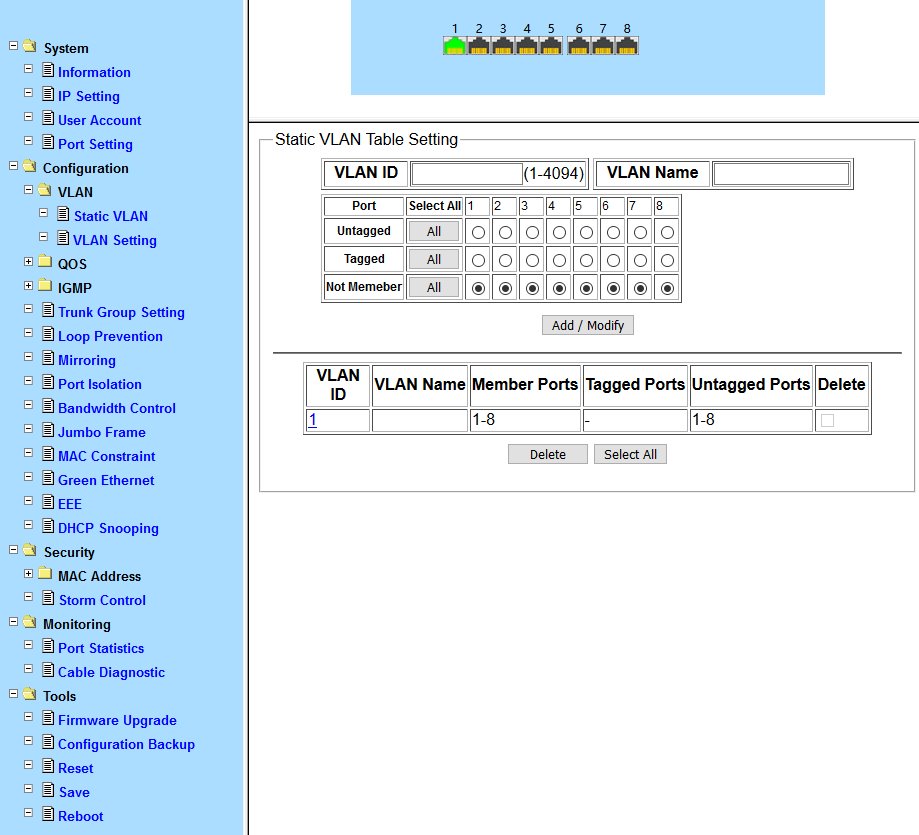

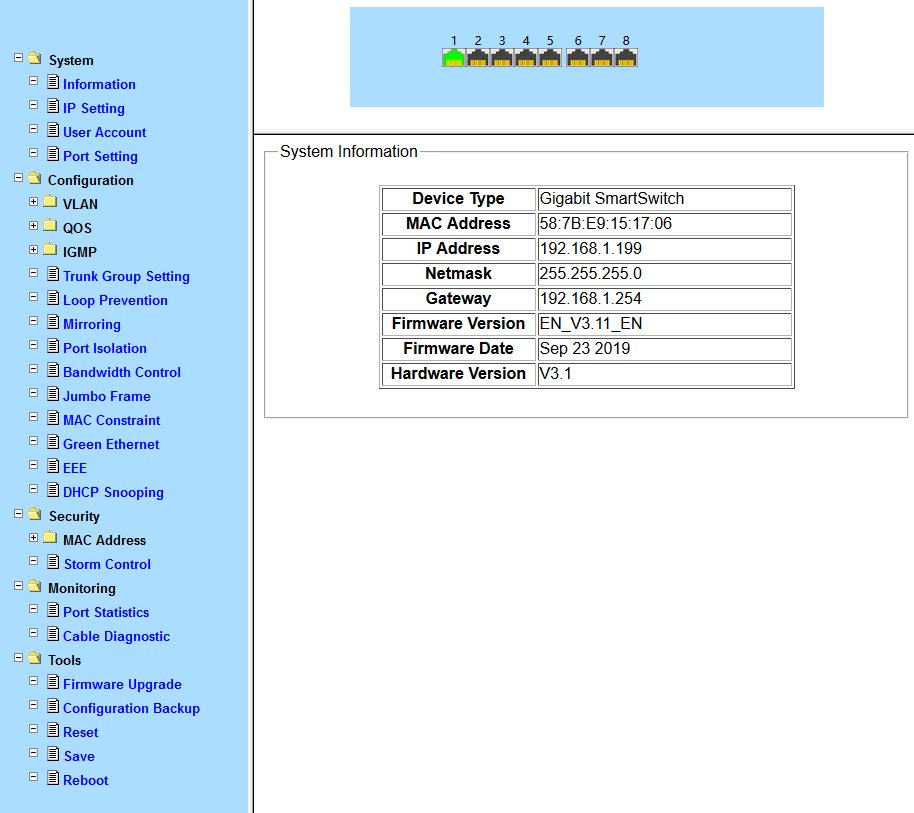

The switch is equipped with its own management. In this management you can, for example, set up the parameters of IP, configure VLAN network or any other very useful L2 things functions.

The package does not include power supply nor PoE injector!

Package

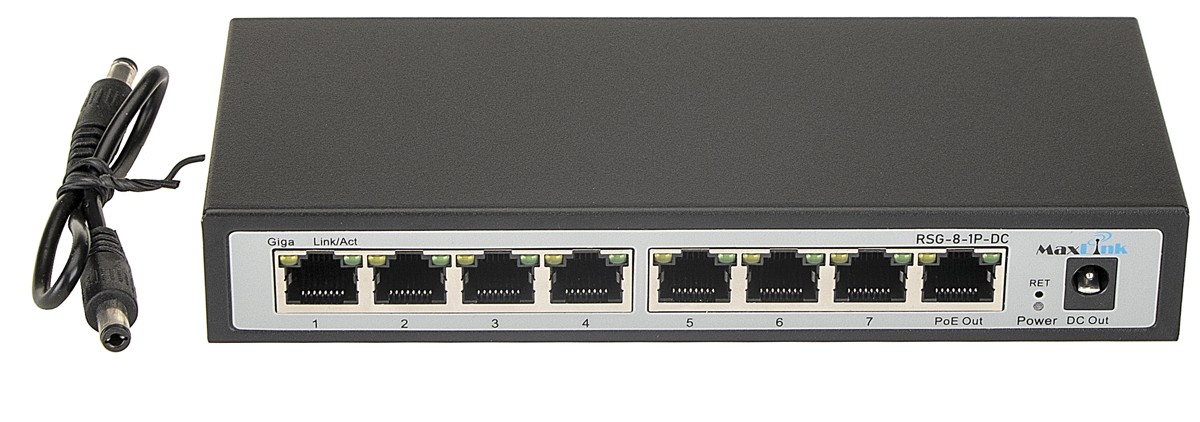

  • The unit itself
  • DC connecting cable with male jack ends

Specifications

Connectors and Interfaces

LAN speed:(8) 10/100/1000Mbps

Power

Power over Ethernet:24 .. 48V DC
Power type:PoE
PoE Input ports:7
PoE type:PoE-Out + PoE-In
PoE-Out standards:Passive 24V, Passive 48V
PoE Out ports:1

Physical characteristics

Design:Desktop
Fans:Without fan
Chassis design:Metal
Operating temperature [°C]:-10 up to 55
Height [mm]:23
Depth [mm]:90
Width [mm]:175

General

Packet forwarding rate [Mpps]:14,9
Switchning capacity [Gbps]:16
MAC address table:8000
Jumbo frame [Bytes]:10240

Software

Management:Web management
Web management:Yes
Features:VLAN, QoS, DHCP snooping
