Sorry but the product is no longer in our offer.

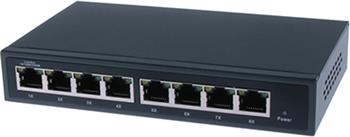

MaxLink reverse PoE switch 8GPoERS-M, 7x PoE IN, 1x PoE Out

8GPoERS-M
Reverse Managed POE Switch MaxLink with 8 ethernet 10/100/1000Mbps ports.7x PoE In, 1x PoE OutPorts 1-7 support POE-in, port 8 supports POE-out. The switch accepts input voltage in the range of 24-48V and in addition to passive POE adapters it can also be powered by active POE 802.3af. The output v... More information

Product description

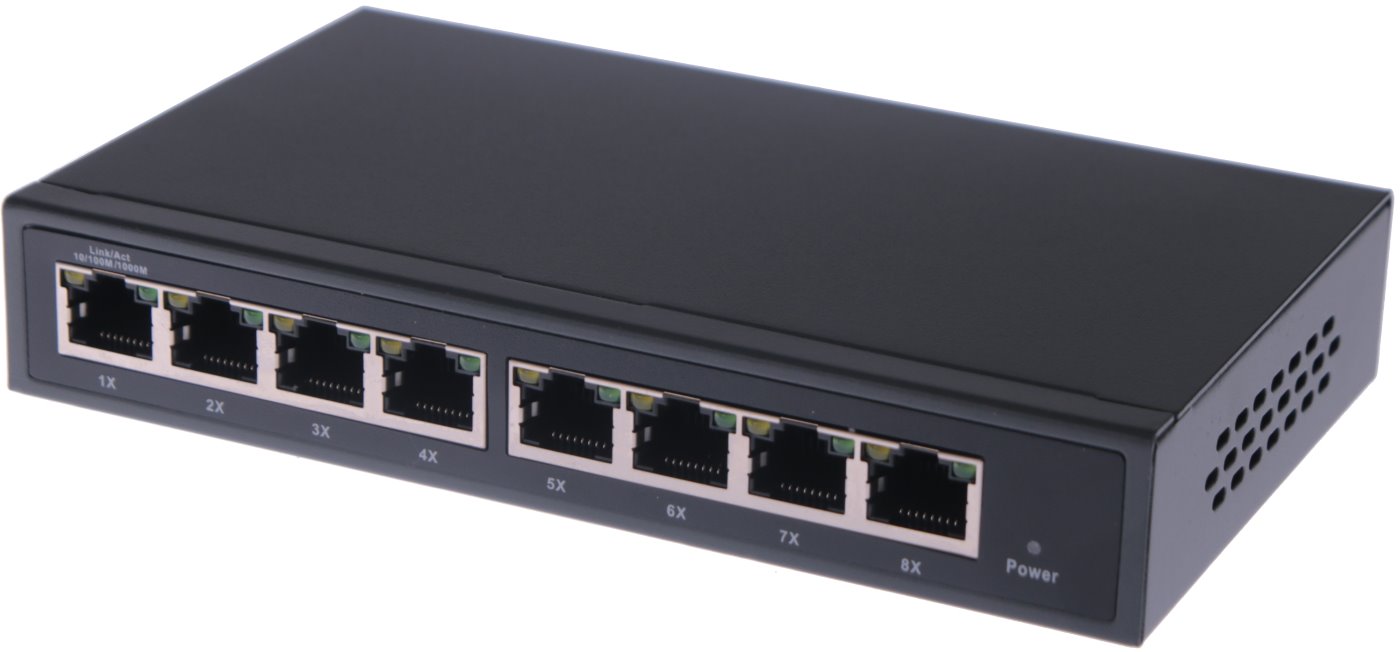

Reverse Managed POE Switch MaxLink with 8 ethernet 10/100/1000Mbps ports.

7x PoE In, 1x PoE Out

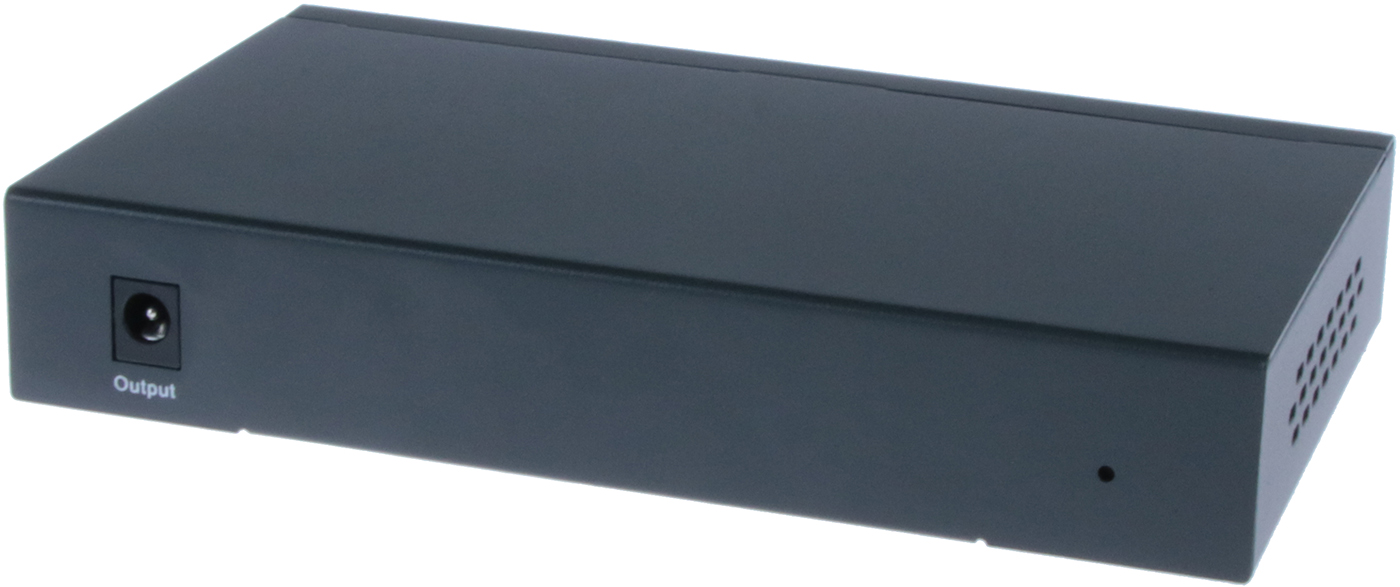

Ports 1-7 support POE-in, port 8 supports POE-out. The switch accepts input voltage in the range of 24-48V and in addition to passive POE adapters it can also be powered by active POE 802.3af. The output voltage is the same as the input voltage. On the back side there is a 12V output via a standard DC connector 5.5/2.1mm. Various input voltages can be connected to the POE-in ports, the highest of them will always be present at the output.

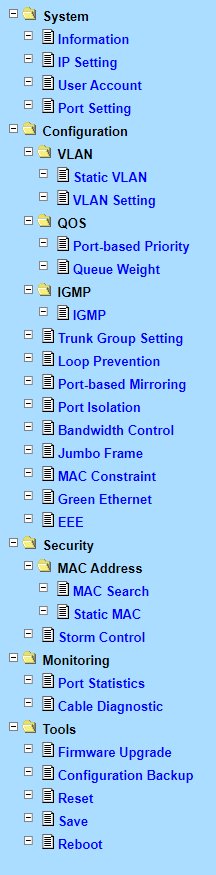

Web management

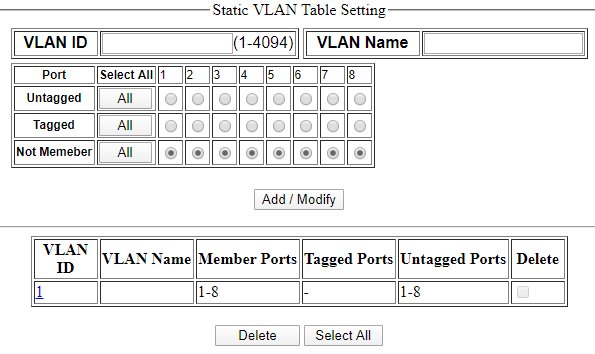

The switch is equipped with its own management, where you can eg. set IP parameters, configure VLANs or many other useful L2 functions.

Power supply or POE injector IS NOT included!

Specifications

Connectors and Interfaces

LAN speed:(8) 10/100/1000Mbps

Power

Power over Ethernet:802.3af, 24 .. 48V DC
Power type:PoE
PoE Input ports:7
PoE type:PoE-Out + PoE-In
PoE-Out standards:Passive 24V, Passive 48V
PoE Out ports:1

Physical characteristics

Design:Desktop
Fans:Without fan
Chassis design:Metal
Buttons:Reset
Operating temperature [°C]:0 up to 40
Height [mm]:28
Depth [mm]:95
Width [mm]:160

General

Jumbo frame [Bytes]:9216

Software

Web management:Yes
Features:VLAN, QoS
Default IP address:192.168.1.199
Default login and password:admin / admin
