MaxLink PoE switch PSBT-19-16P-250, 18x LAN/16x PoE 250m, 1x SFP, 802.3af/at/bt, 200W

PSBT-19-16P-250

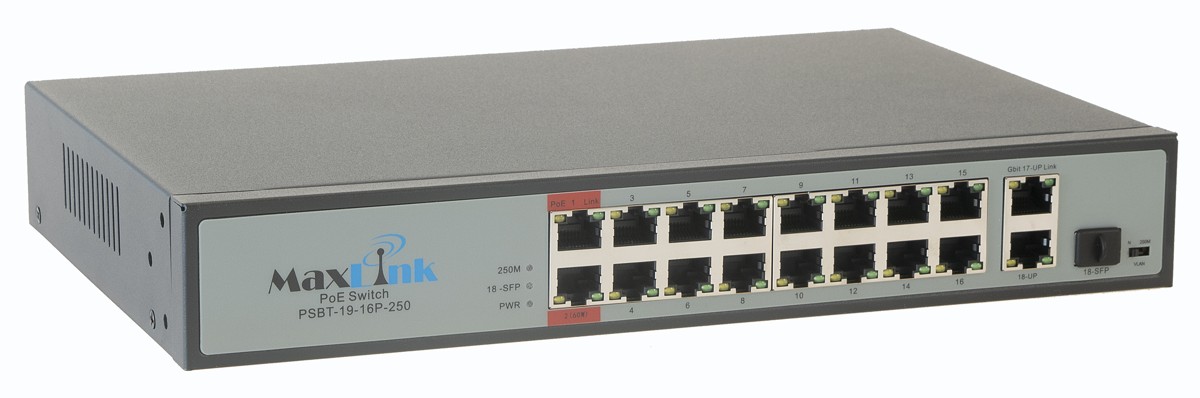

PSBT-19-16P-250 is a 16 port 10/100Mbps PoE switch without management with two additional Gigabit LAN ports, which only one is a LAN/SFP combo. Automatically detects and powers devices supporting PoE standard 802.3af/at (max. 30 W/port) on ports 1 to 16, even on ports 1 and 2 supports PoE standard ... More information
To select 4 variants

Product description

PSBT-19-16P-250 is a 16 port 10/100Mbps PoE switch without management with two additional Gigabit LAN ports, which only one is a LAN/SFP combo. Automatically detects and powers devices supporting PoE standard 802.3af/at (max. 30 W/port) on ports 1 to 16, even on ports 1 and 2 supports PoE standard 802.3bt (60 W). Ports 17 and 18 serve as uplinks and do not support PoE. The total budget for powering the connected devices is 200 W using the internal power supply. The switch automatically balances the power for individual ports according to the consumption of the device. The Switch can be mounted in a 19" rack thanks to the included accessories.

802.3bt support!

Port 1 and 2 also support the 802.3bt standard, where up to 60 W output power is available for the connected device! Also new are switches equipped with the Watchdog function. If the Ethernet link is not detected for about 1 minute and the power supply is active at the same time, the supply voltage will be interrupted and the connected device will be restarted.

Switch has a manual mode switch

  • Normal "N": The switch supplies the device at a distance of max. 100 m. The throughput of the switch per port is 10/100 Mbps.
  • VLAN: Ports are logically separated from each other, in this mode unwanted broadcast storms can be avoided. The switch powers devices up to 100 m and the throughput per port is 10/100 Mbps.
  • 250 m: The switch powers devices up to 250 m with a reduced throughput of 10 Mbps per port.

Package contents

  • Device
  • Ears to 19" rack
  • Power cord

Specifications

Connectors and Interfaces

LAN speed:(16) 10/100Mbps + (2) 10/100/1000Mbps
Optical interfaces:(1) 1000Mbps Combo

Power

Power type:Mains power (230V)
PoE type:PoE-Out (only)
PoE-Out standards:802.3af, 802.3at, 802.3bt
PoE Out ports:16
PoE budget [W]:200
Long range PoE - up to 250m:Yes
Max. power consumption [W]:200
Power via connector/terminal:230V AC

Physical characteristics

Design:Rackmount

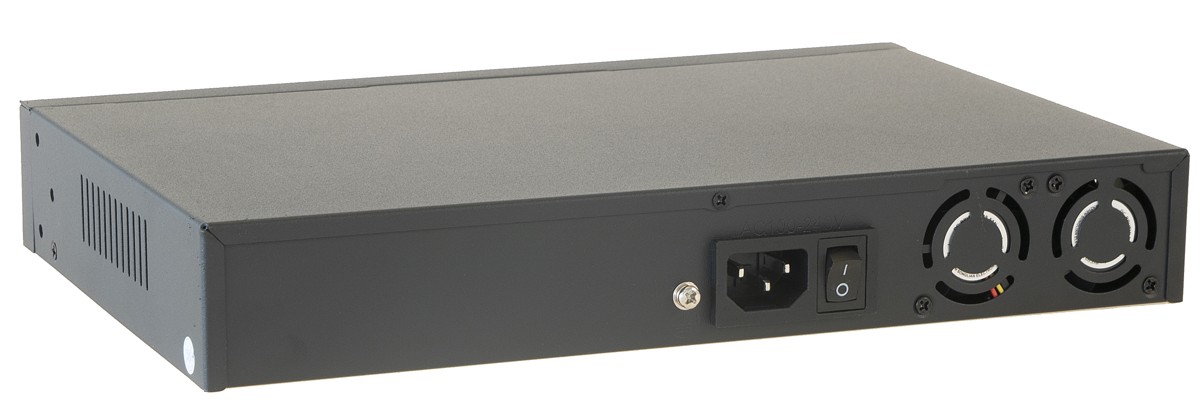

Fans:(2) 40 x 40 mm
Chassis design:Metal
Buttons:Normal / VLAN / 250m
Operating temperature [°C]:-10 up to 55
Height [mm]:45
Depth [mm]:195
Width [mm]:295

General

Packet forwarding rate [Mpps]:5,4
Switchning capacity [Gbps]:7,2
MAC address table:8000
Jumbo frame [Bytes]:10240
