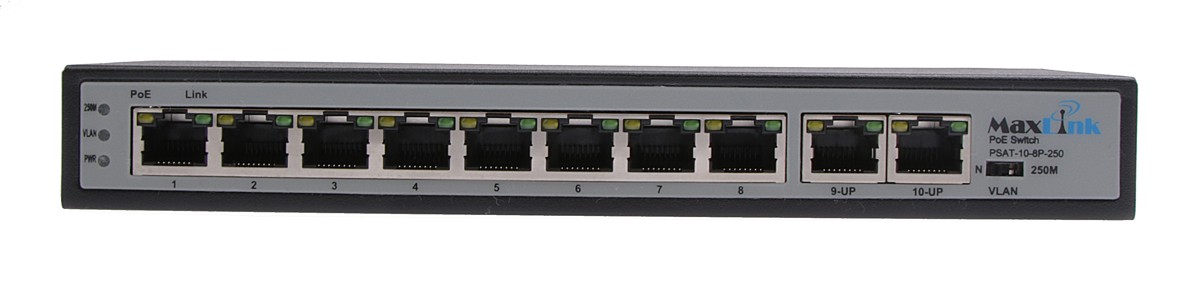

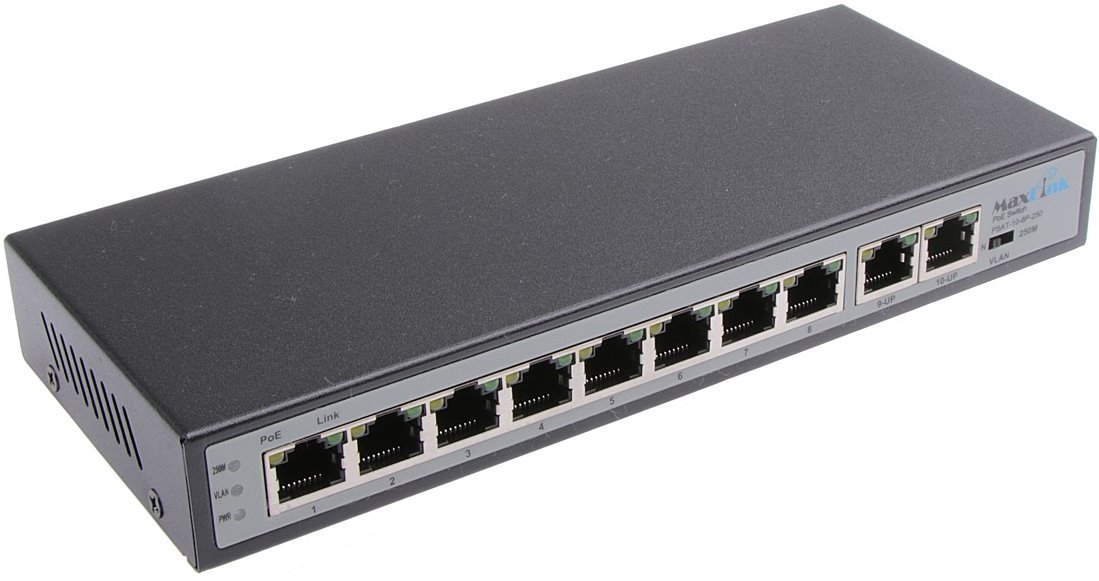

PSAT-10-8P-250 is 10 port 10/100Mbps unmanaged switch with 8 PoE ports. Switch automatically detecting and powering 802.3af/at (up to 30W/port) devices on 1 - 8 ports. 9th and 10th ports are normal ethernet ports without PoE functionality as uplink ports. Total PoE budget for devices is 120W with external power source.
manual mode switch
- Normal "N": The switch supplies the device at a distance of no more than 100m. The port-to-port throughput is 10/100Mbps.
- VLAN: Ports are logically separated from one another, preventing unwanted broadcast storms in this mode. The switch supplies power to the device up to 100m and the portability to the port is 10/100Mbps.
- 250m : Long Range Mode. Switch powering devices up to 250m with a reduced 10Mbps throughput per port.
With this switch you can power wide range of IP cameras, VoIP telephones, WiFi AP and other devices supporting 802.3af/at PoE standard.

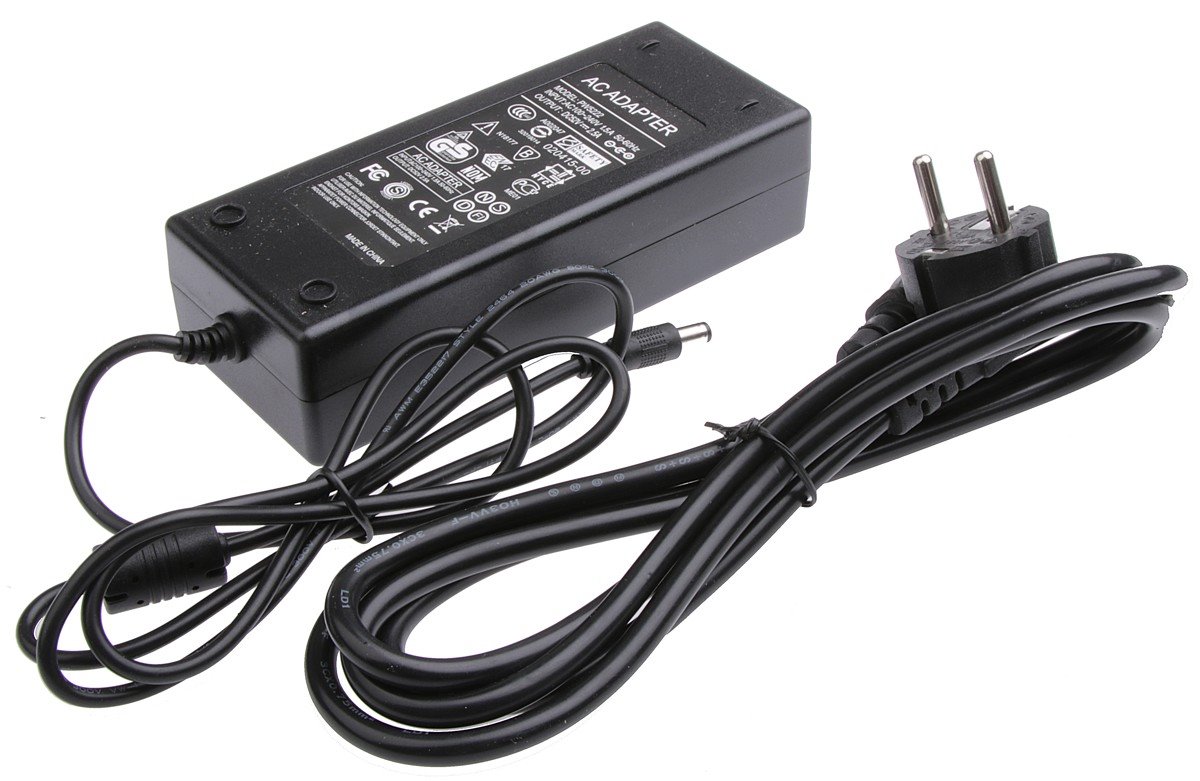

- Power adapter 52V/2.5A
- Power cord
