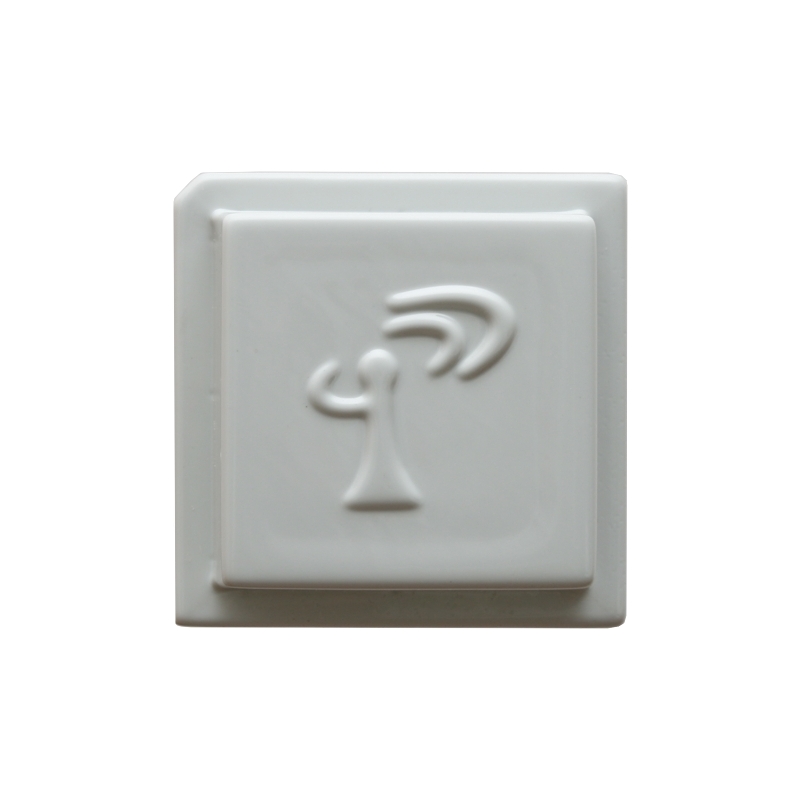

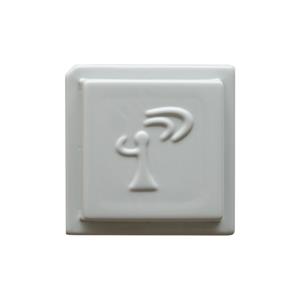

MaxLink panel antenna 10dBi 2,4GHz, N female

01-PA-M10
New professional panel antenna for 2.4GHz band with 10dBi gain. Heart antenna consists PCB board thickness 1 mm in the embodiment LF HAL. The radome is made from high quality UV stable ABS plastic with a thickness of 1.5 mm. For bonding and sealing of antenna used professional adhesive and sealant ... More information

Product description

New professional panel antenna for 2.4GHz band with 10dBi gain. Heart antenna consists PCB board thickness 1 mm in the embodiment LF HAL. The radome is made from high quality UV stable ABS plastic with a thickness of 1.5 mm. For bonding and sealing of antenna used professional adhesive and sealant from Würth. The counterweight and the back of the antenna to achieve the lowest weight is used aluminum sheet of thickness 1.8 mm. Mount the antenna is made of galvanized steel sheet with a thickness of 2mm for maximum strength, while allowing filming antenna in the range of 45 ° in the vertical plane.

Specifications

Wireless features

MIMO, SISO:1 x 1
Polarization:V or H
VSWR:< 1,5
F/B ratio [dB]:25
Wireless frequency:2.4 GHz
Azimuth beam width (-6dB) [°]:60
Azimuth beam width (-6dB) [°]:60
Antenna kind:Directional
Antenna gain [dBi]:10

Physical characteristics

Antenna design:Panel
Designed for mast diameter [mm]:28 up to 60
Purpose:Outdoor
Material:UV stabilized ABS plastic
Weight [kg]:0,3
Depth [mm]:25
Width [mm]:90
Height [mm]:90

Connectors and Interfaces

RF connectors:(1) N female
