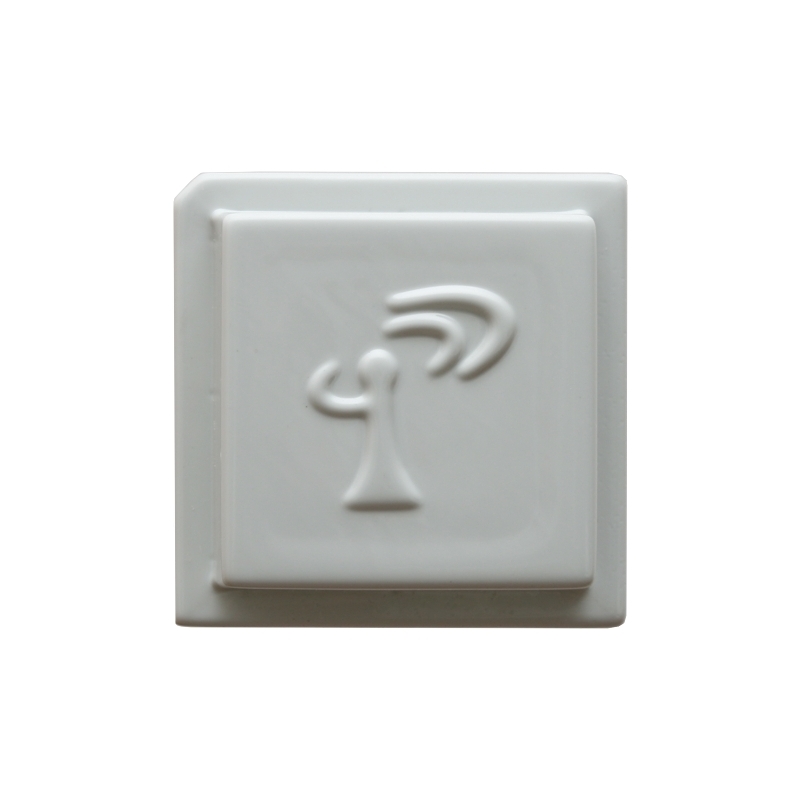

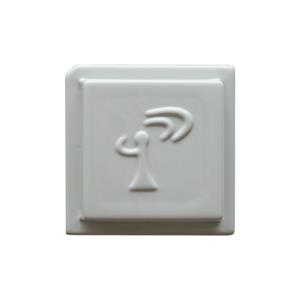

MaxLink panel antenna 10dBi 2,4GHz, 5m H155, RSMA male

01-PA-M10-5
A new professional 2.4GHz panel antenna with 10dBi gain. The heart of the antenna consists of a 1mm thick PCB board in the LF HAL design. The antenna cover is made of high-quality, UV-stabilized ABS plastic with a thickness of 1.5mm. An adhesive and sealing sealant from Würth is used to bond and se... More information
To select 3 variants

Product description

A new professional 2.4GHz panel antenna with 10dBi gain. The heart of the antenna consists of a 1mm thick PCB board in the LF HAL design. The antenna cover is made of high-quality, UV-stabilized ABS plastic with a thickness of 1.5mm. An adhesive and sealing sealant from Würth is used to bond and seal the antenna. Counterweight and back antenna to achieve the lowest weight is a 1.5mm thick aluminum sheet. The antenna bracket is made of galvanized 2mm thick steel sheet for maximum strength, while allowing the antenna to rotate within 45 ° in the vertical plane.

Specifications

Wireless features

MIMO, SISO:1 x 1
Polarization:V or H
VSWR:< 1,5
F/B ratio [dB]:25
Wireless frequency:2.4 GHz
Azimuth beam width (-6dB) [°]:60
Azimuth beam width (-6dB) [°]:60
Antenna kind:Directional
Antenna gain [dBi]:10

Physical characteristics

Antenna design:Panel
RF cable length [m]:5
Designed for mast diameter [mm]:28 up to 60
Purpose:Outdoor
Material:UV stabilized ABS plastic
Weight [kg]:0,4
Depth [mm]:25
Width [mm]:90
Height [mm]:90

Connectors and Interfaces

RF connectors:(1) RSMA male
