MaxLink MaxStation Mikron 924PR AC Lite, 24dBi dish MIMO shielded antenna, RouterOS L3, complete outdoor unit

MS-MI-924PR-DEX-AC-LITE
MS-MI-924PR-DEX-AC-LITE is unique outdoor unit suitable as CPE or PtP solution. Mikron unit consists of MikroTik RB911-5HacD with L3 license, with integrated wireless card with two MMCX connectors to support 802.11a/n/ac 2x2 MIMO, up to 866Mbps and very precision MaxLink MIMO parabolic antenna with... More information
To select 2 variants

Product description

MS-MI-924PR-DEX-AC-LITE is unique outdoor unit suitable as CPE or PtP solution. Mikron unit consists of MikroTik RB911-5HacD with L3 license, with integrated wireless card with two MMCX connectors to support 802.11a/n/ac 2x2 MIMO, up to 866Mbps and very precision MaxLink MIMO parabolic antenna with collar, radom, 24dBi gain and maximum adapted for the 5GHz frequency band.

For adequate performance cares QCA9531 processor running at 650MHz, 64MB RAM and 10/100Mbps Ethernet port with support passive PoE.

The platform is based on MikroTik RouterBOARD RouterOS operating system. It is a complete device with a very simple installation that can be used with Internet providers who prefer a platform MikroTik RouterOS and prefer a simple installation complete unit. Power supply units can be Ethernet over passive PoE (10 to 30V DC). The product complies with FCC and CE.

Package contains

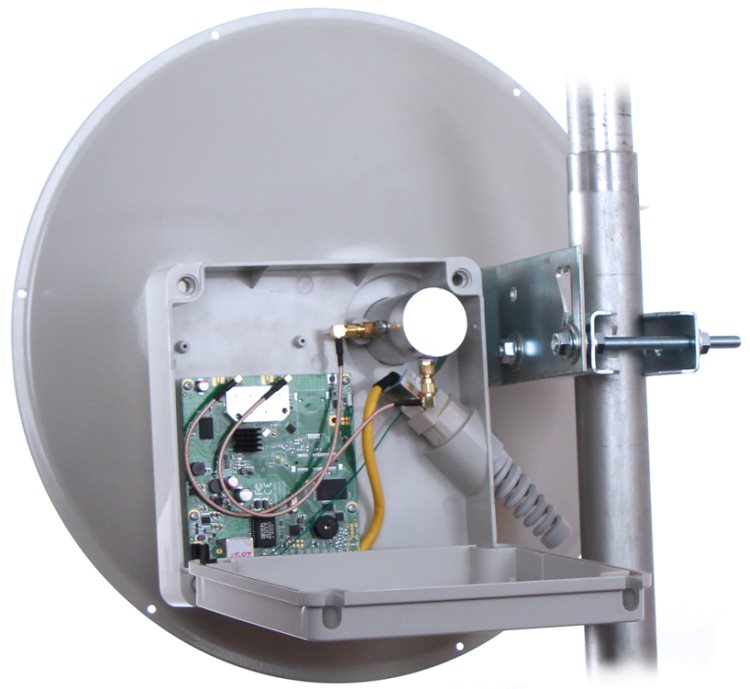

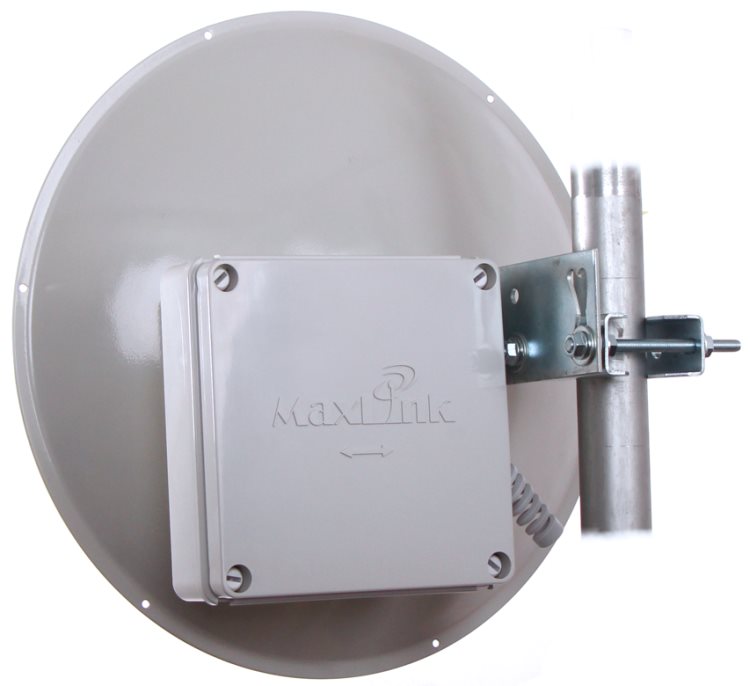

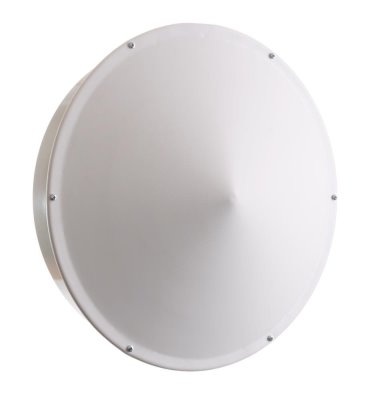

  • Device (antenna with collar + radom + RouterBOARD)
  • PoE 10/100Mbps power adapter
  • Holder

Specifications

Wireless features

Tx power [dBm]:29
Wireless frequency:5 GHz
WiFi standards:802.11ac, 802.11n, 802.11a
Transmission speed - WiFi 5GHz [Mb/s]:866
Azimuth beam width (-6dB) [°]:9
Azimuth beam width (-6dB) [°]:
Type of antenna:Built-in
Antenna gain [dBi]:24

Physical characteristics

Design:Outdoor
Collar:Yes
Operating temperature [°C]:-40 up to 70
Height [mm]:15
Depth [mm]:255
Width [mm]:420

Connectors and Interfaces

LAN speed:(1) 10/100Mbps

Power

Power over Ethernet:10 .. 30V DC
Power type:PoE
PoE type:PoE-In (only)
Max. power consumption [W]:7
Power via connector/terminal:8 .. 30V DC

Hardware

RAM [MB]:64
CPU:QCA9531
CPU frequency [MHz]:720
CPU cores:1
Storage internal size [MB]:128

Software

Operating system:RouterOS - L3
Default IP address:192.168.88.1
Default login and password:admin / -
