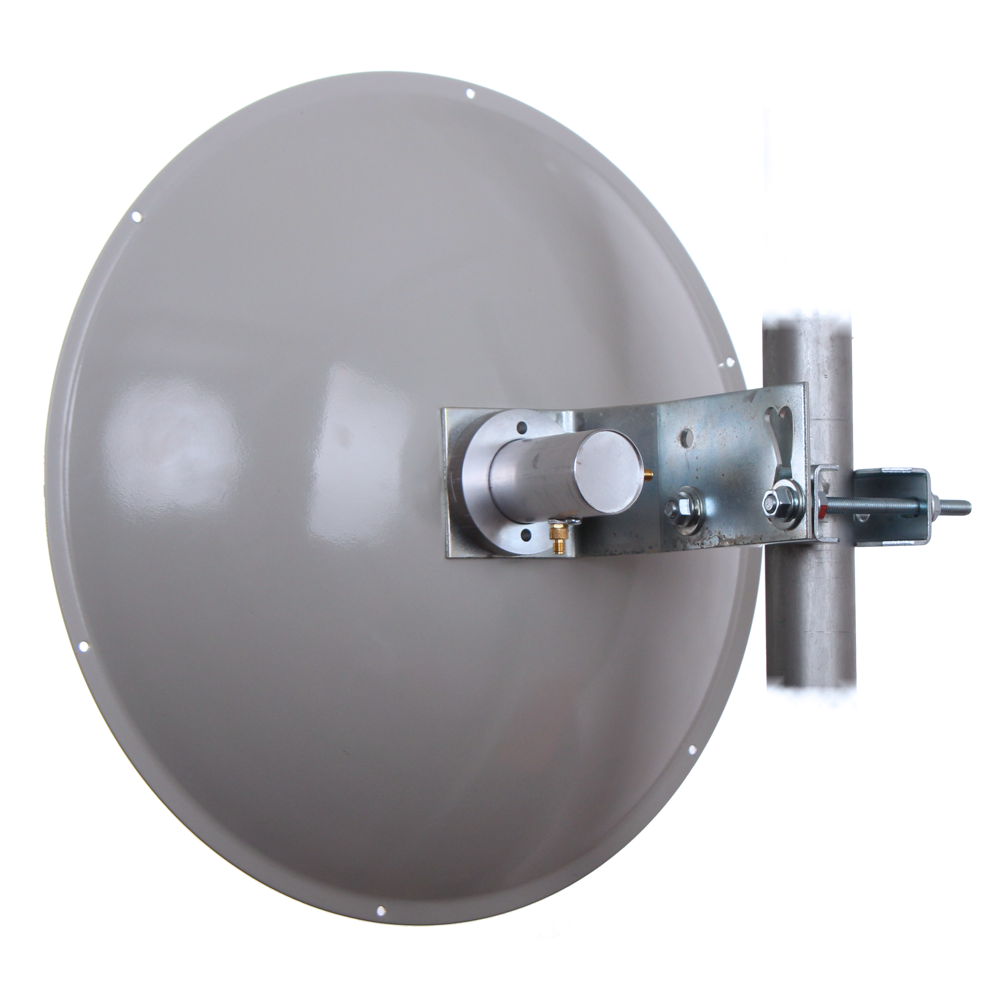

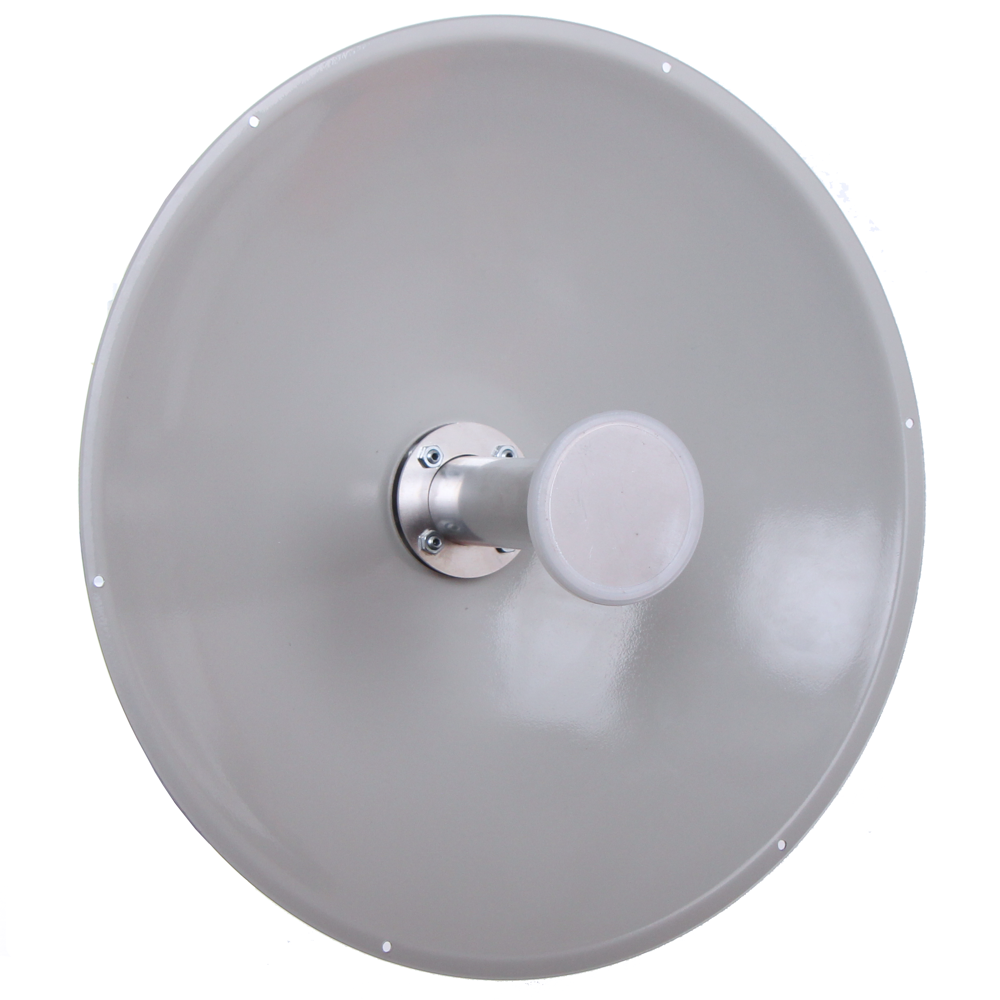

MaxLink dish antenna 24dBi 5GHz, AC, 2xRSMA

02-PR-M24-AC
Dual directional parabolic antenna with lightweight aluminum reflector for 2x2 MIMO systems in the 5GHz band. It is characterized by a narrow beam angle (9 °), extra high front-to-back ratio. Designed for extremely noisy conditions. ... More information

Product description

Dual directional parabolic antenna with lightweight aluminum reflector for 2x2 MIMO systems in the 5GHz band. It is characterized by a narrow beam angle (9 °), extra high front-to-back ratio. Designed for extremely noisy conditions.

Specifications

Wireless features

VSWR:< 1,5
MIMO, SISO:2 x 2
Polarization:VH
F/B ratio [dB]:32
Wireless frequency:5 GHz
Elevation beam width (-6dB) [°]:9
Azimuth beam width (-6dB) [°]:
Antenna type:Directional
Antenna gain [dBi]:24

Connectors and Interfaces

RF connectors:(2) RSMA female

Physical characteristics

Antenna design:Parabolic
Designed for mast diameter [mm]:28 up to 66
Purpose:Outdoor
Depth [mm]:235
Width [mm]:420
Height [mm]:
