The Maxlink 10GBT-1-WM is a simple active PoE injector supporting the 802.3af/at/bt standards as well as 10G Ethernet (10/100M/1/2.5/10G). It features a pair of shielded Ethernet connectors (1x input, 1x output), and power is delivered over 4 pairs (2 pairs powering is supported).

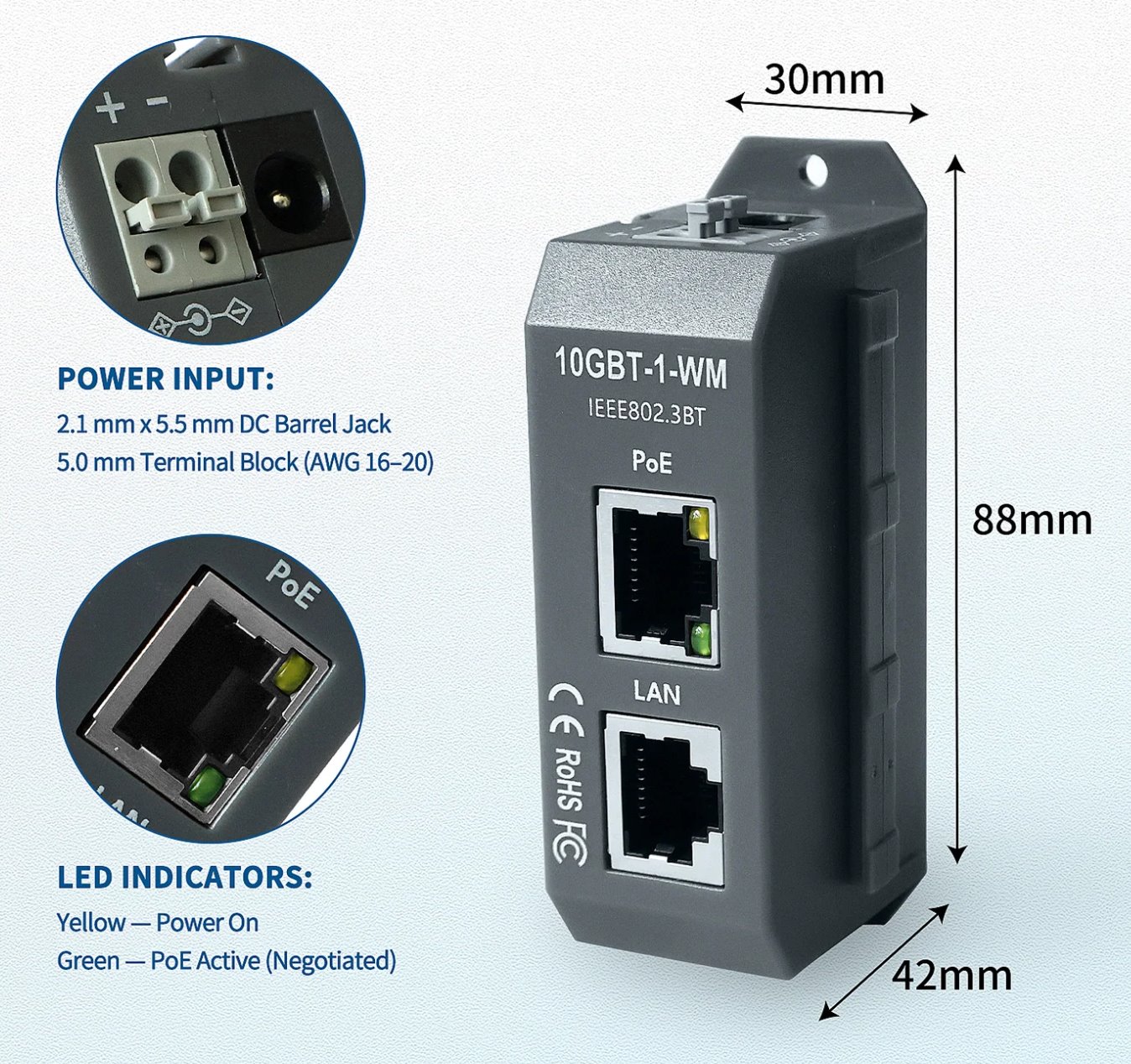

The injector is not equipped with a voltage converter, meaning the output voltage is identical to the input voltage. When using a 56V input, the injector can deliver up to 90W of power. Current limitation per port is max. 1.61 A. Power can be supplied via a standard 5.5 / 2.1mm DC connector or via a terminal block that accepts wires with a cross-section of AWG16-20.

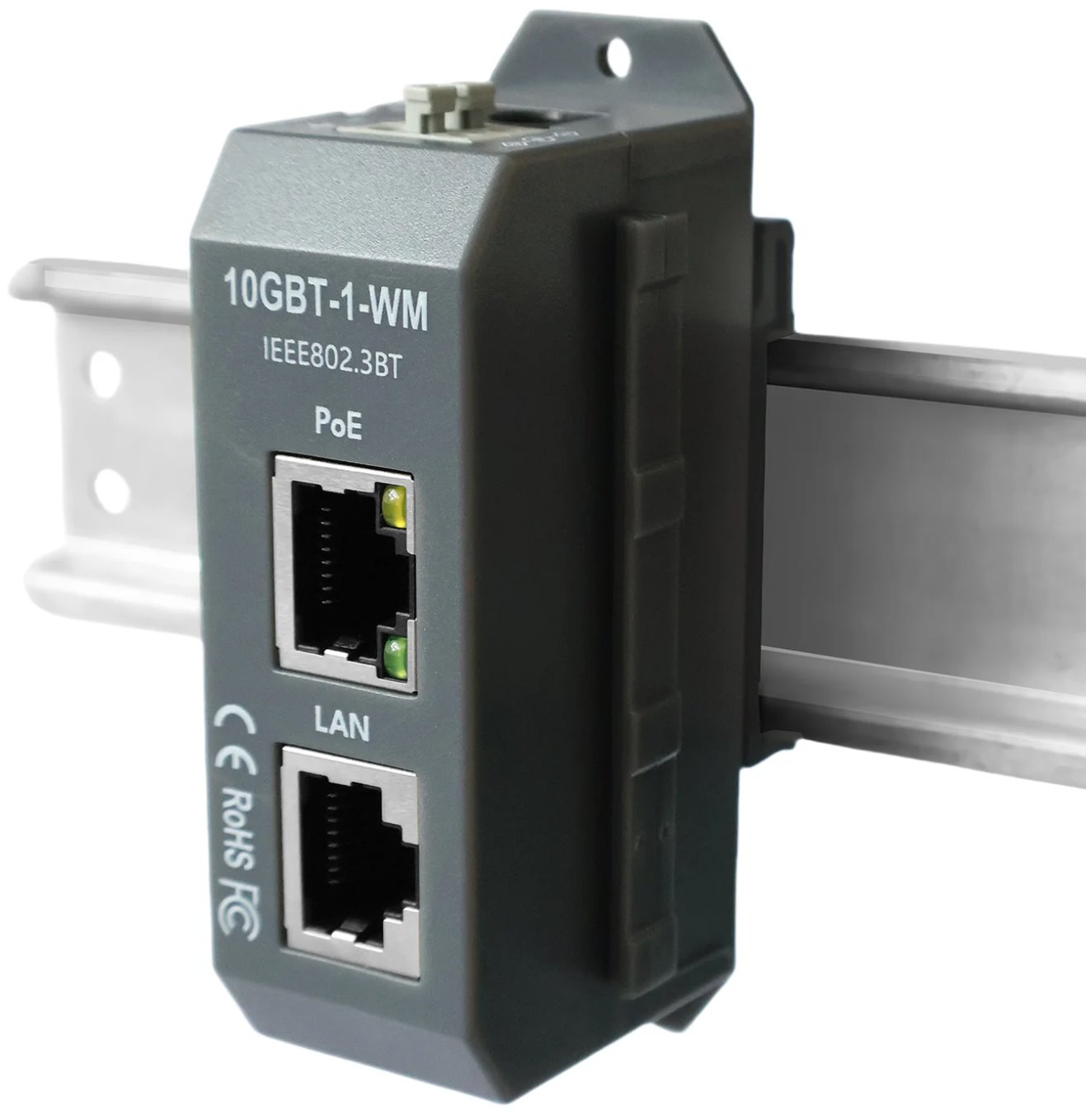

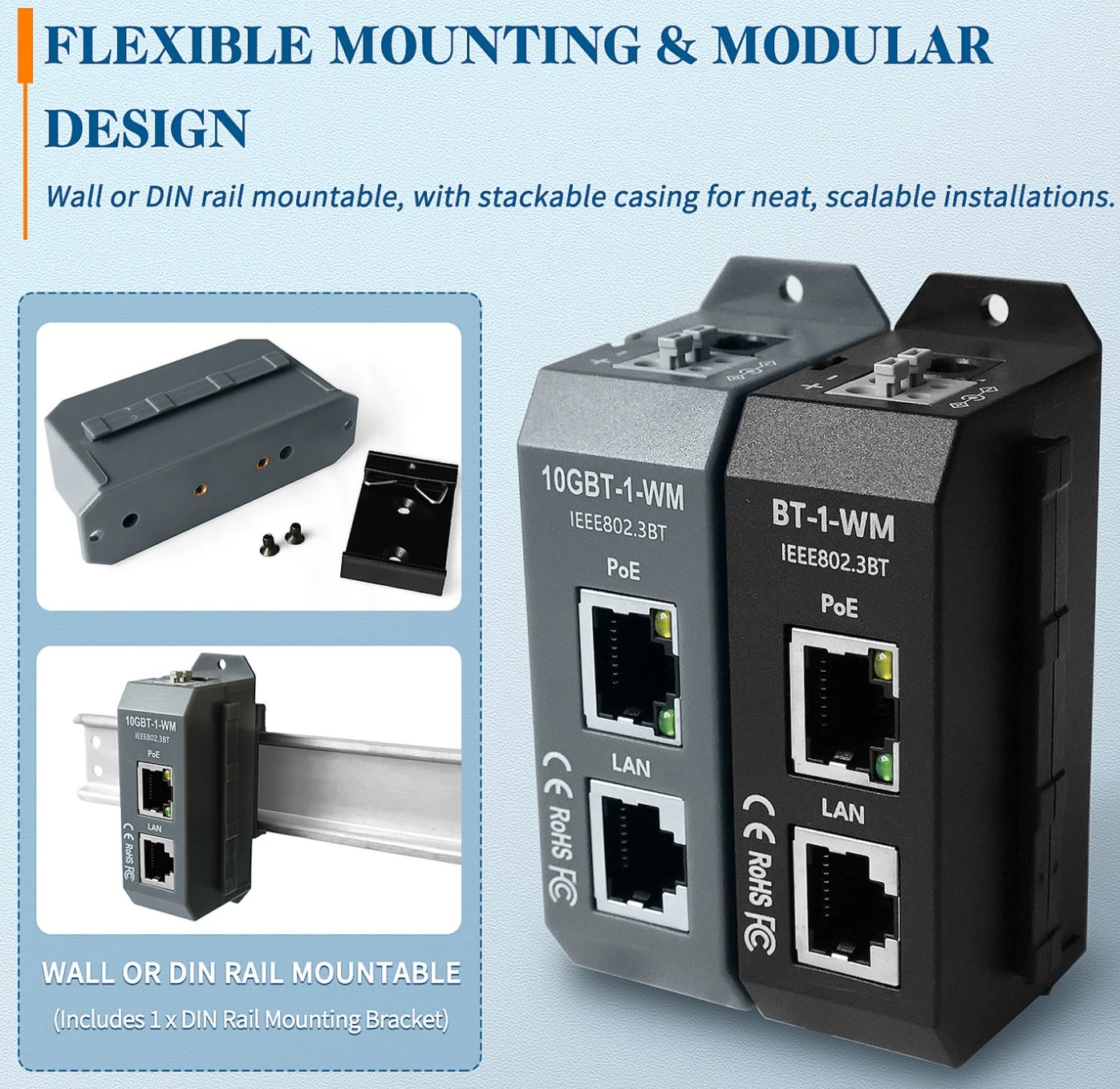

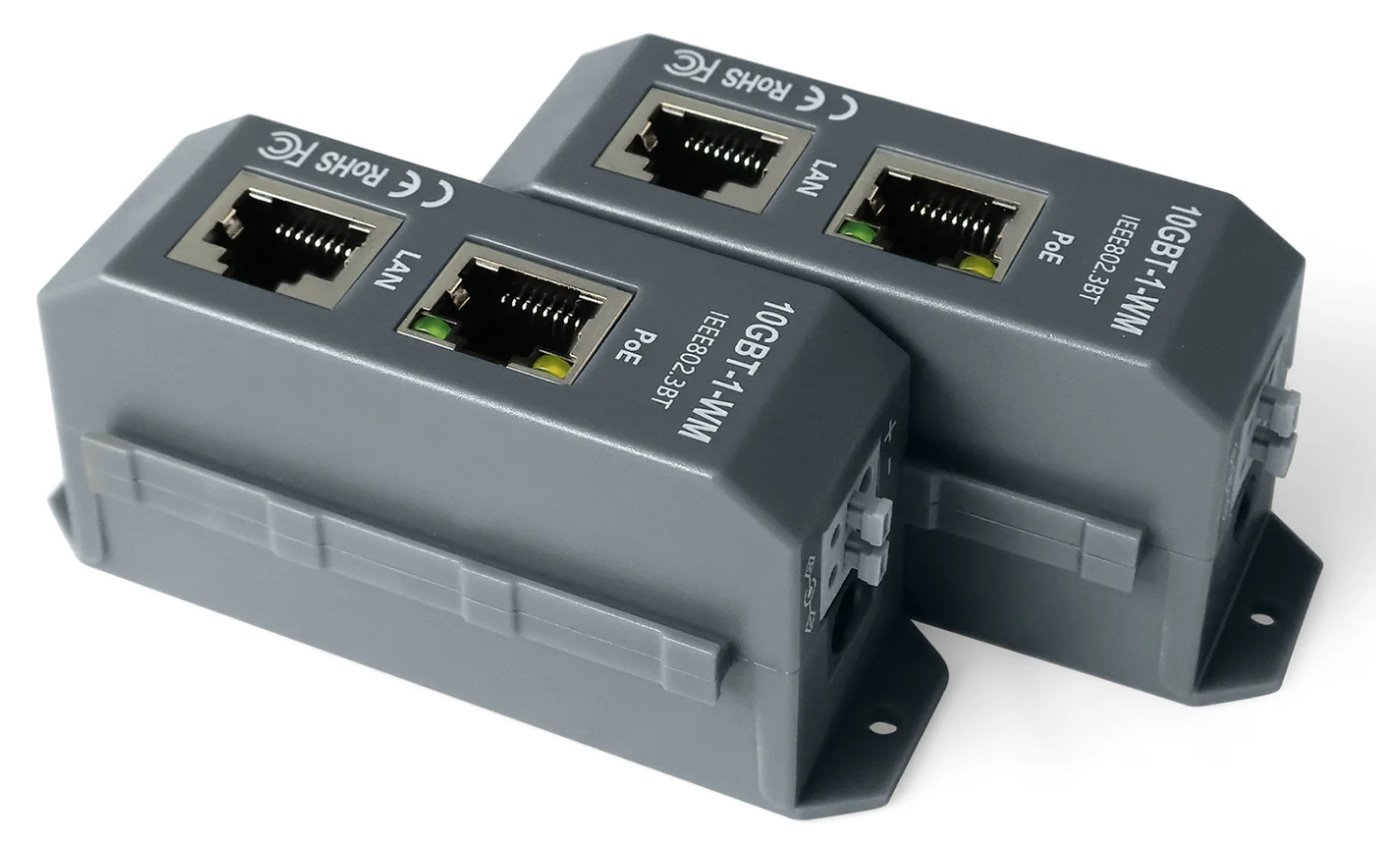

Thanks to its clever design, injectors can be combined into compact units and mounted not only on a wall but also on a DIN rail. A DIN rail bracket is included in the package.
